Press-Fit Pin Solutions
Automatic pin switching with an innovative cam mechanism.
Product Details
Product Brochure
Product Video
Product Introduction
Key Advantages：

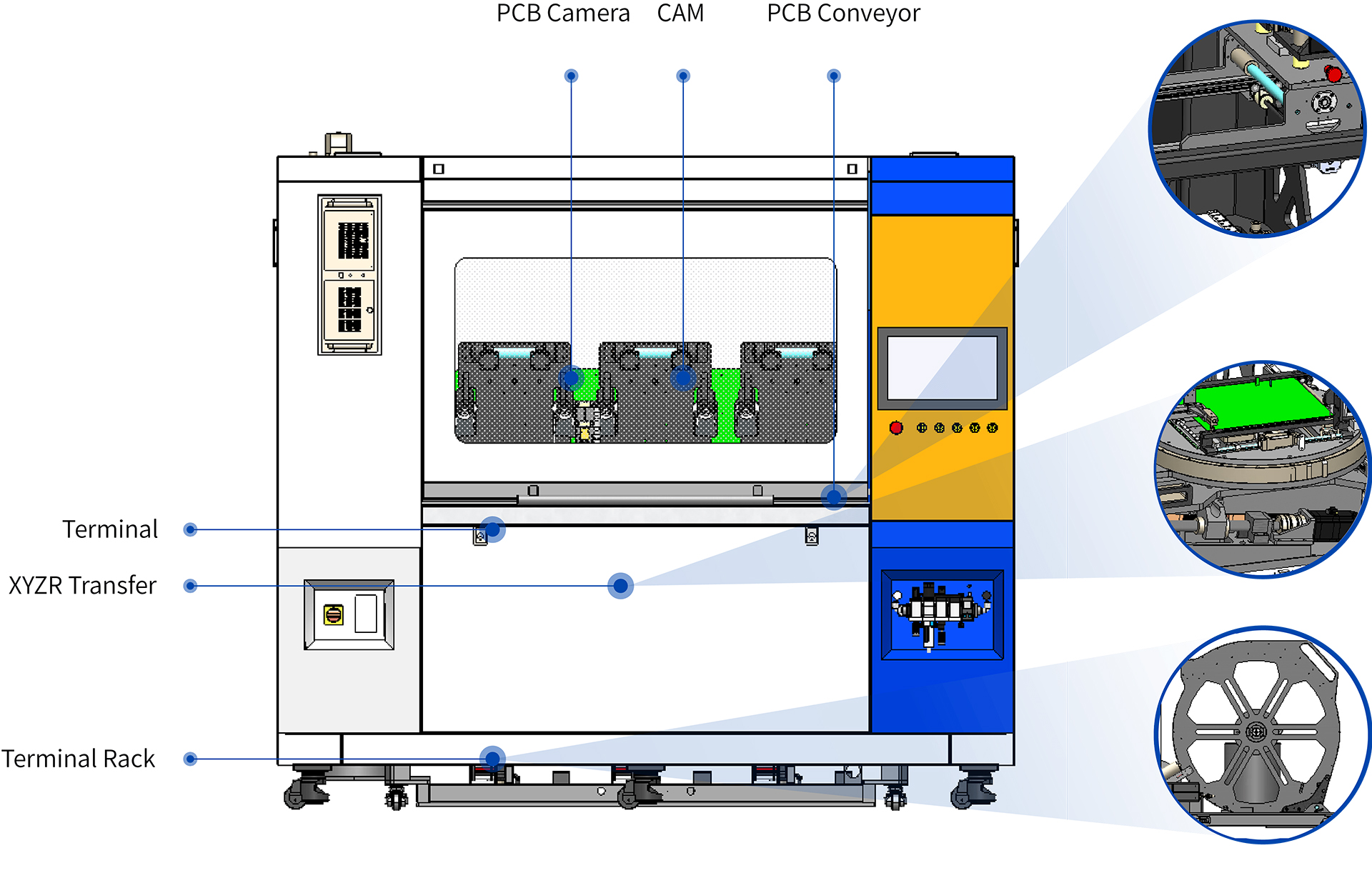

The Harmontronics IPA800 is a new-generation fully automatic pin insertion machine. Powerful automatic pin switching, an innovative cam mechanism, high pin insertion speeds, a more flexible insertion head configuration and advanced force-displacement monitoring help our customers achieve flexible, highly efficient production plans.
High production efficiency with pin insertion speeds up to 8 pins/s
Supports different terminal types, with up to 3 insertion heads
Modular design for fast changeover
User-friendly HMI, easy to operate and maintain
Main Process
Applicable Products
Technical Specifications
Max. PCB Size
400x350mm
Machine Dimensions (including material rack)
2180x2600x2000mm
Conveyor Height
900±30mm
Pin Insertion Speed
8 pins/s
Repeat Positioning Accuracy
≤±0.01 mm
Max. Insertion Force
1000N
Insertion Type
Anvil
Insertion Mode
Single‑pin / Dual‑pin / Triple‑pin
Insertion Angle
360° arbitrary
