Header Connector Automatic Assembly Solutions
Fully automated line with one-stop delivery.
Product Details
Product Brochure
Product Video
Product Introduction
Key Advantages：
Adopts precision bending‑blanking and injection molds to ensure product consistency.
Integrates injection molding machines and robotic arms to provide fully‑automatic one‑stop solutions.
Compatible with multiple products with one‑click quick program switching.
Features digital communication control for the whole line to enable traceable product data.

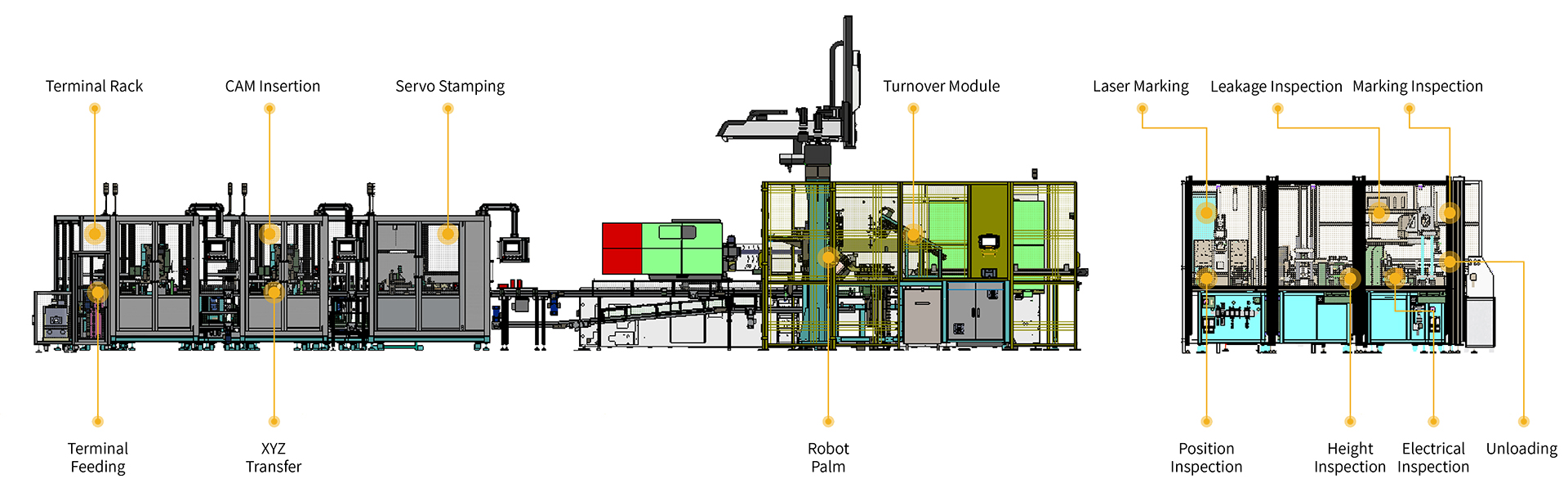

Main Process
Applicable Products
Pure plastic housing
Compatible with Body Control Modules (BCM), lighting control modules, etc.
Semi-finished pin housing
Semi-finished board-to-board connectors for new energy vehicle (NEV) low-voltage control units, automotive gateways, etc.
Finished board-end connector modules
Finished board-end connector modules Systems), automotive domain controllers, etc.
Technical Specifications
Equipment Dimensions
2000*1400*2000 mm (single unit)
Pin Insertion Speed
3~8 pins/s
Bending Speed
6 pins/s
Changeover Time
<20 min per unit
Air Pressure
0.5~0.7Mpa
Power Supply
3~380V/AC/50Hz
Noise
<78dB
